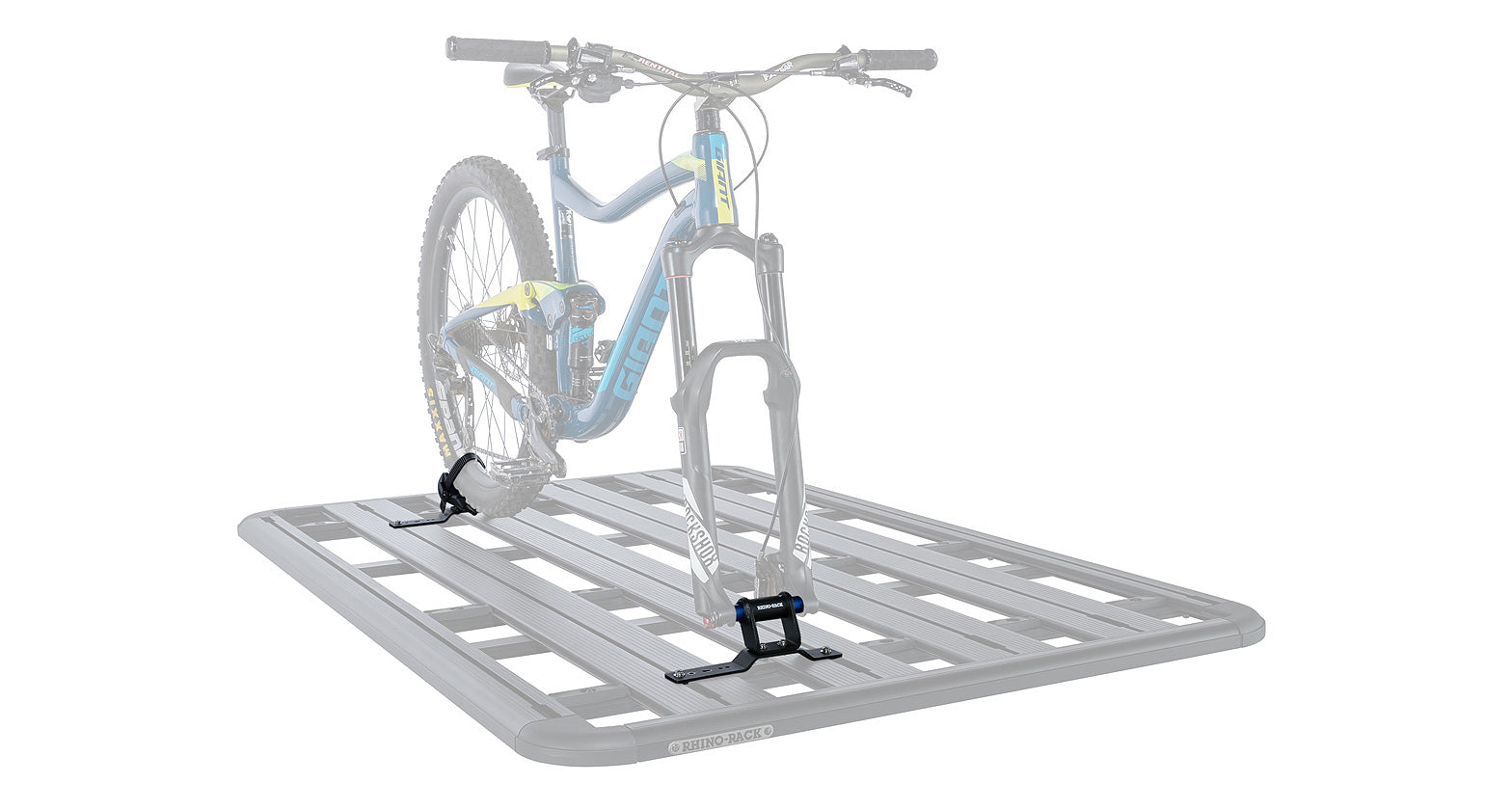

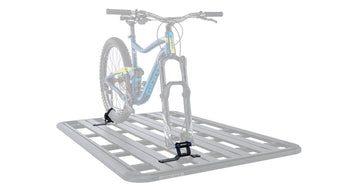

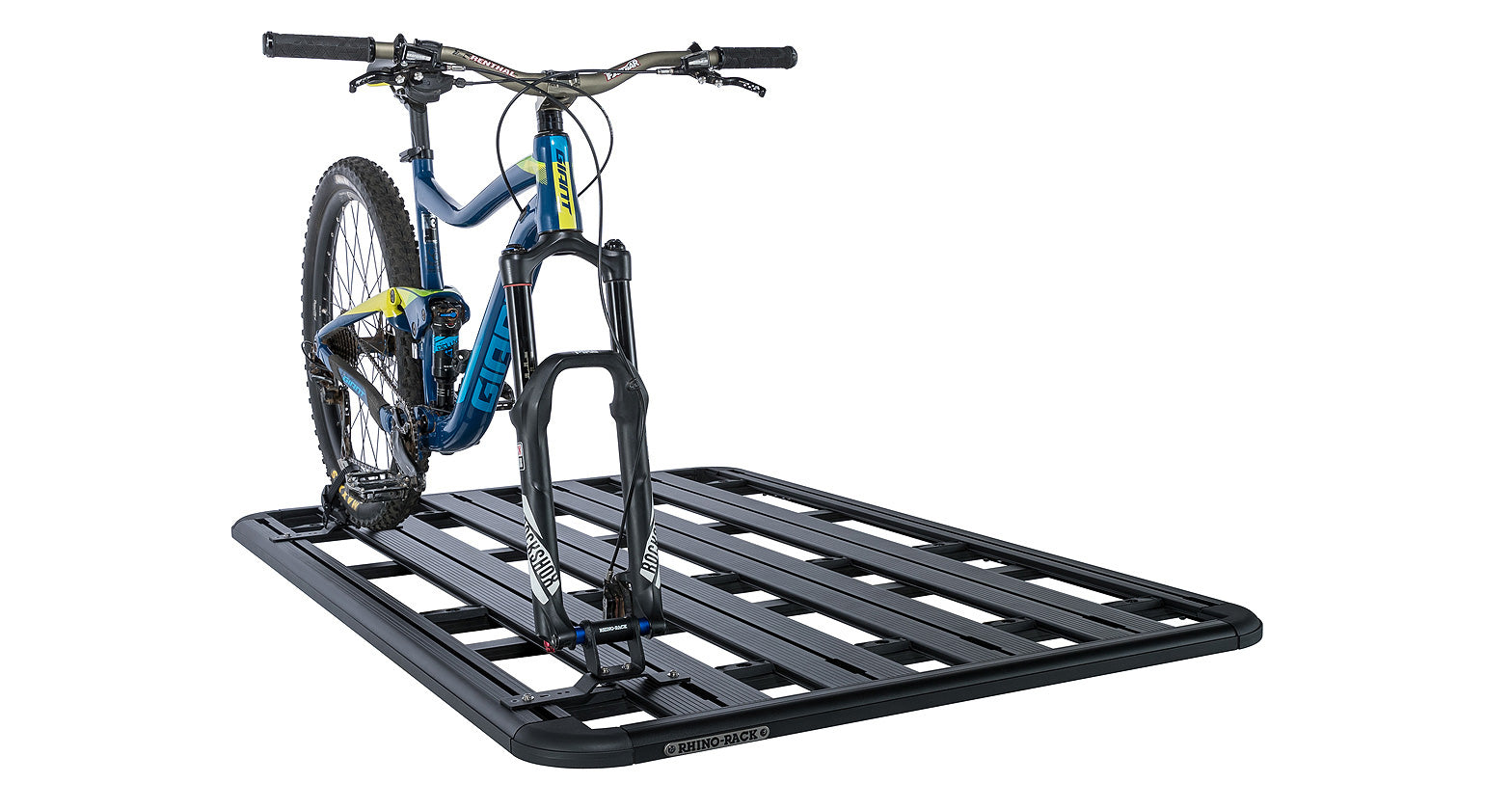

Pioneer Thru Axle Bike Carrier

- easy and quick installation, using your existing thru axle or quick release skewer and rear wheel strap to secure the bike to the Pioneer
- Compatible with all other Rhino-Rack Thru Axle inserts (view product compatibility for insert sizes)
- All fixings and tools included
- Quick and easy installation/removal
- The fork carrier can be rotated to prevent handlebars clashing
- Rear wheel carrier can be flipped to fit on smaller trays

* Modern axle sizing update

- 9mm x 100mm and 15mm x 110mm (Boost size) Multi-Axle Adaptors included, making it suitable for most bicycles with quick release wheels
- Includes the new patented Zwifloc channel nuts that allow the wheel mounts to be placed anywhere without moving other accessories. The Zwifloc nut simply drops into the channel, so there is no need to slide into position.

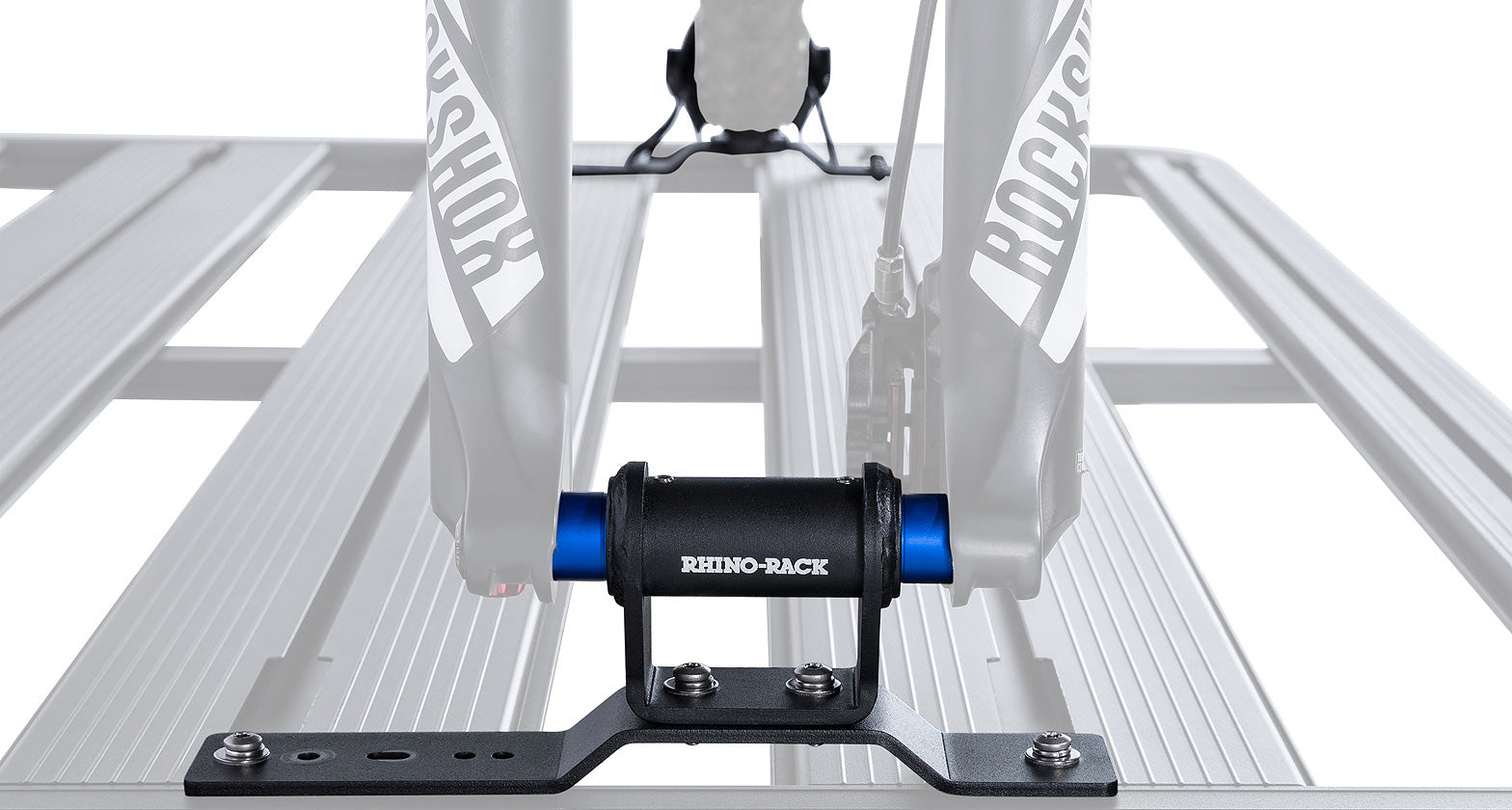

- A front wheel axle mount bracket, a rear wheel holder and all mounting hardware included.

Off road weight allowance: 11kg/24lbs
On road weight allowance: 17kg/37lbs

- Rear wheel strap fits <3" wheel dimensions
- Front mount height: 95mm
- Rear mount height (without strap): 98mm
- Maximum on-road weight allowance: 17kg/37lbs
- Maximum off-roading weight allowance: 11kg/24lbs
- Not suitable for +20kg electric bikes (SL allowed within weight limit)
